Specification for Design of PCB Pad — Pad Size (Three)

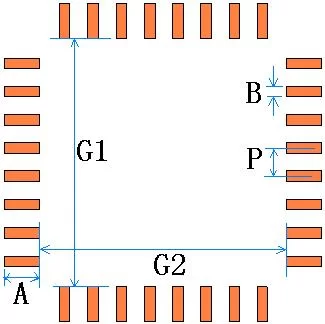

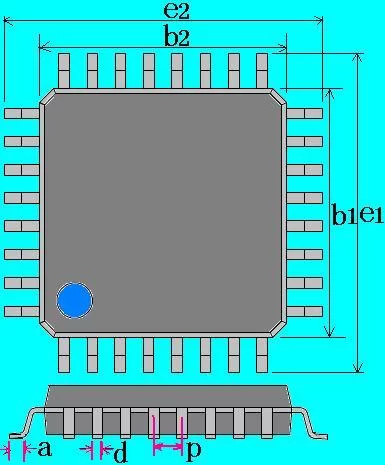

QFP
(Pitch=0.4mm)

A=a+0.8,B=0.19mm

P=p

G1=e1-2*(0.4+a)

G2=e2-2*(0.4+a)

The pin length is

changed from a+0.70mm to a+0.80mm,

which is good for

repair and printed

pull tip handling. For

the height of 3.8mm

LQFP pad design

width is used 0.23mm (stencil opening width 0.19mm)

QFP
(Pitch=0.3mm)

A=a+0.7,B=0.17mm

P=p

G1=e1-2*(0.4+a)

G2=e2-2*(0.4+a)

T=0.10mm.

Pin opening width 0.15mm

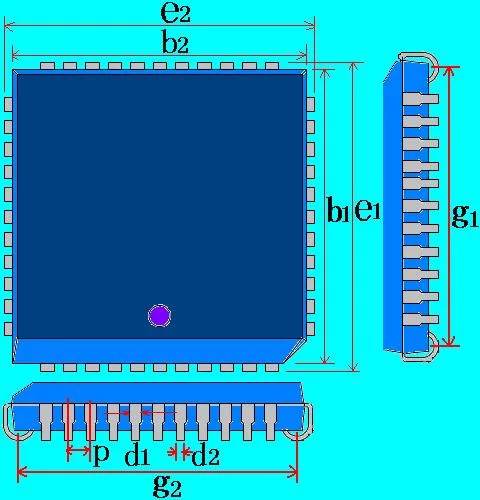

PLCC
(Pitch≧0.8mm)

A=1.8mm,B=d2+0.10mm

G1=g1-1.0mm, G2=g2-1.0mm,

P=p

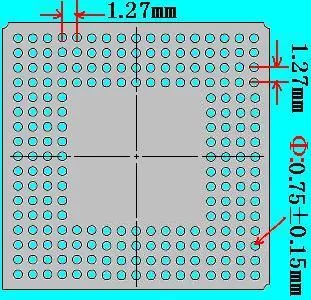

BGA
Pitch=1.27mm,
Ball diameter:
Φ=0.75±0.15mm

D=0.70mm

P=1.27mm

Recommended stencil

opening diameter is

0.75mm

Does not represent

the arrangement of

the actual BGA

bottom solder balls

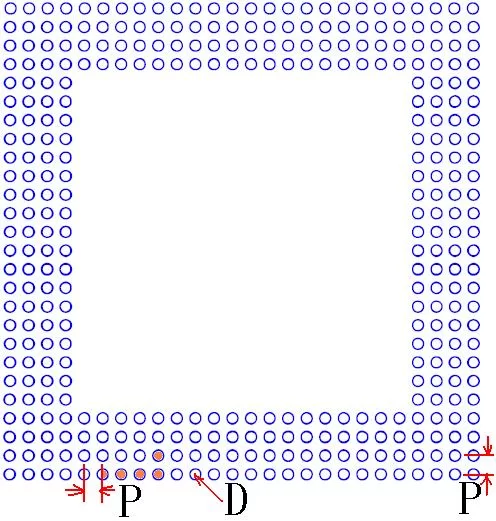

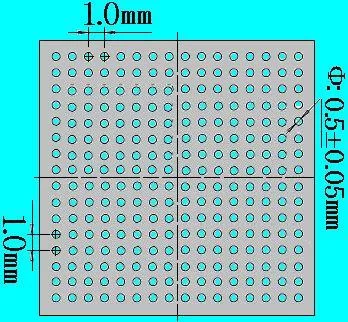

BGA
Pitch=1.00mm,
Ball diameter:
Φ=0.50±0.05mm

D=0.45mm

P=1.00mm

Recommended stencil

opening diameter is 0.50mm

Does not represent

the arrangement of

the actual BGA

bottom solder balls

BGA
Pitch=0.80mm,
Ball diameter:
Φ=0.45±0.05mm

D=0.35mm

P=0.80mm

Recommended stencil

opening diameter is 0.40mm

Does not represent

the arrangement of

the actual BGA

bottom solder balls

BGA
Pitch=0.80mm,
Ball diameter:
Φ=0.35±0.05mm

D=0.40mm

P=0.80mm

Recommended stencil

opening diameter is 0.40mm

Does not represent

the arrangement of

the actual BGA

bottom solder balls

BGA
Pitch=0.75mm,
Ball diameter:
Φ=0.45±0.05mm

D=0.3mm

P=0.75mm

Recommended stencil

opening diameter is 0.40mm

Does not represent

the arrangement of

the actual BGA

bottom solder balls

BGA
Pitch=0.75mm,
Ball diameter:
Φ=0.35±0.05mm

D=0.3mm

P=0.75mm

Recommended stencil

opening diameter is 0.35mm

Does not represent

the arrangement of

the actual BGA

bottom solder balls

LGA (Ball-less BGA)
Pitch=0.65mm,
Pin diameter:
Φ=0.3±0.05mm

D=0.3mm, P=0.65mm

Recommended stencil

1:1 opening

Does not represent

the arrangement of

the actual BGA

bottom solder balls

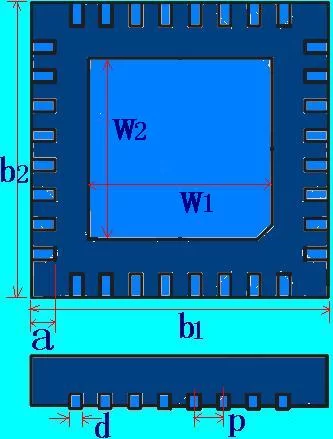

QFN
（Pitch≧0.65mm）

A=a+0.35,B=d+0.05

P=p,W1=w1,W2=w2

G1=b1-2*(0.05+a)

G2=b2-2*(0.05+a)

Design independent pads for each pin.

Note: If the ground pad to design the thermal over-hole, it

should be 1.0mm-1.2mm gap evenly distributed in the central

thermal pad, over-hole should be connected to the PCB inner

metal ground layer, over-hole diameter recommended for 0.3mm-0.33mm

It is recommended that

the stencil pin opening

length direction flare

0.30mm, ground pad

opening bridge, bridge width 0.5mm, the

number of bridges W1/2, W2/2, take the integer.

If the pad design has

holes, stencil openings

to avoid holes,

grounding pad opening area of 50% to 80% of

the grounding pad area can be, too much tin on the pin welding has a

certain impact

QFN
（Pitch<0.65mm）

A=a+0.3,B=d, P=p

W1=w1,W2=w2

G1=b1-2*(0.05+a)

G2=b2-2*(0.05+a)

It is recommended to

flare 0.20mm in the

direction of the stencil

pin opening length, and the rest as described

above

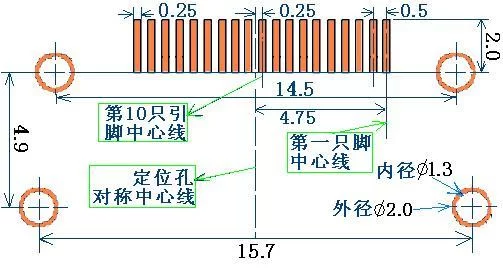

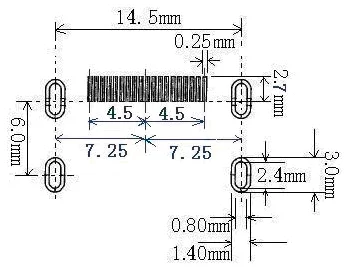

HDMI
(6100-150002-00)

It is recommended that

the stencil opening pin width in accordance with 0.27mm opening, pin

length direction

outward expansion

0.3mm opening

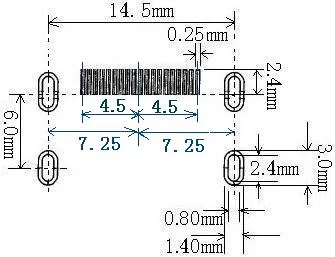

HDMI
(6100-151910-00)

It is recommended that

the stencil opening pin width in accordance with

 0.27mm opening, pin

length direction outward expansion 0.3mm

opening

When trial production pay attention to see if the size design is

 suitable

HDMI
(6100-151910-01)

It is recommended that

the stencil opening pin width in accordance with 0.265mm opening, pin

length direction outward expansion 0.3mm

opening

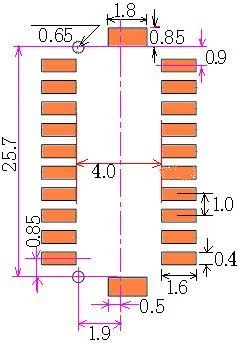

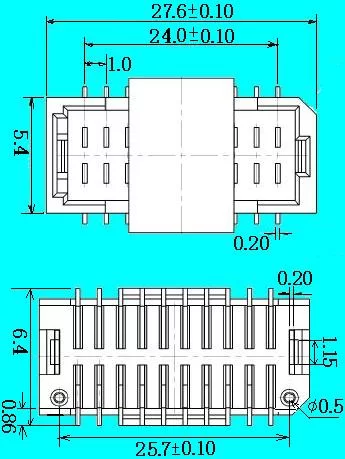

5400-997000-50

It is recommended that

the stencil pins be

opened at 0.6mm in

width and 0.4mm

outward in the direction of the pin length.
