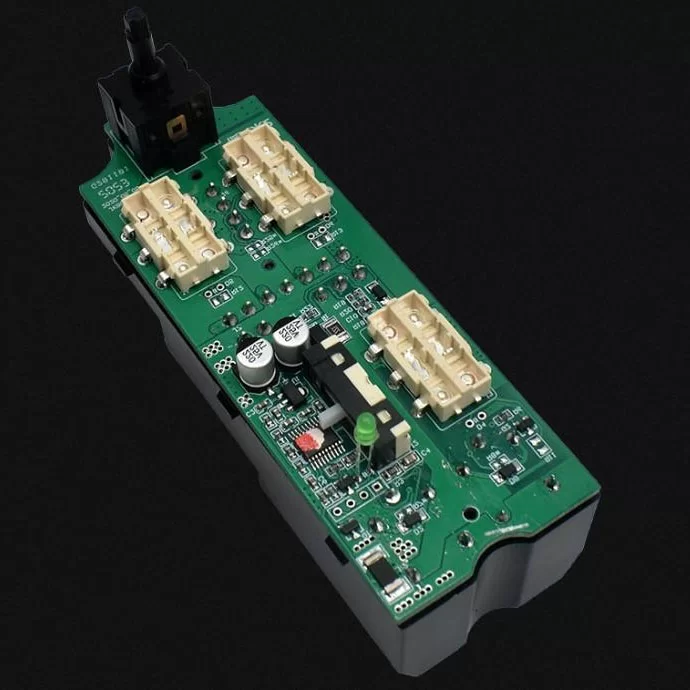

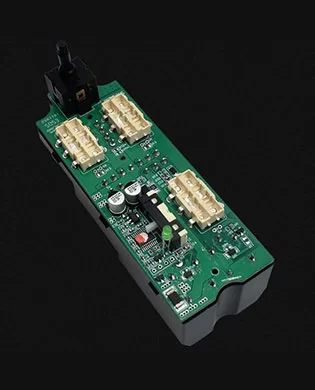

Car Combination Switch PCBA
Comprehensive Technical Overview of Car Combination Switch PCBA
The Car Combination Switch PCBA represents an advanced printed circuit board assembly engineered specifically for modern automotive interior control systems. Designed to integrate seamlessly as the core electronic intelligence behind vehicle control units, this assembly powers critical functions including the Car Combination Switch, Glass Lifter Switch, Power Window Key, and the Left Front Main Drive Button Assembly. By bridging high-performance electronic circuitry with robust mechanical interfacing, this PCBA ensures reliable, long-lasting tactile feedback and precise electrical signal transmission under diverse automotive operating conditions.
Modern vehicles demand exceptionally high reliability from their electrical architectures. Cabin electronics endure continuous mechanical actuation, fluctuating ambient temperatures, electrical noise, and constant vibrational stress. To meet these stringent demands, our Car Combination Switch PCBA is meticulously fabricated using premium-grade materials and cutting-edge Surface Mount Technology (SMT) and Through-Hole Technology (THT) assembly processes. Every board undergoes rigorous electrical testing and quality control inspections to guarantee flawless operation upon integration into the vehicle's primary wiring harness, ensuring optimal performance for drivers and passengers alike.
Whether deployed in original equipment manufacturing (OEM) production lines or utilized as a high-grade replacement assembly in automotive aftermarket repair, this printed circuit board assembly delivers exceptional value. It addresses common mechanical and electrical pain points associated with cabin switch failures, such as sticky window mechanisms, intermittent contact failures, and connector degradation. Through meticulous engineering and strict adherence to factory specifications, our assembly provides a dependable electronic backbone for vehicle door control modules.
Technical Specification Matrix
To ensure complete transparency and compatibility with your vehicle manufacturing or aftermarket upgrade requirements, the precise technical parameters of the Car Combination Switch PCBA are detailed below:
| Parameter Feature | Technical Specification Details |
|---|---|
| PCB Type | Rigid PCB (High mechanical rigidity and structural stability) |
| Layer Configuration | Multi-layer (Optimized for complex signal routing and power distribution) |
| Base Material | FR-4 (Superior flame retardant, thermal, and mechanical properties) |
| Solder Mask Color | Green (Standard protective polymer coating against oxidation and bridging) |
| Silk Screen Color | White (High-contrast labeling for component identification and assembly) |
| Surface Treatment | Lead-free HASL (Hot Air Solder Leveling for environmental compliance and solderability) |
| Applications | Automotive combination switch, power window control units, driver door assemblies |
| Connection Mode | Wired (Secure, low-latency physical harness connection) |
| LED Indicator | Yes (Integrated backlighting and operational status illumination) |
Key Engineering Advantages & Operational Performance
1. Flawless Window Lifting Mechanism Integration
One of the most critical challenges in power window switch assemblies is maintaining smooth, consistent mechanical travel without binding or sticking. The exact match of the rising window realizes not stuck, ensuring that every actuation of the power window key translates into fluid, uninterrupted window movement. The precision layout of the underlying multi-layer FR-4 circuit board ensures that micro-switches and actuator pins align with microscopic exactness, eliminating mechanical skew and friction during daily driving operations.
Furthermore, the tactile feedback engineered into the switch contacts provides drivers with a distinct, satisfying click upon engagement. This precise tactile response prevents accidental double-presses and minimizes mechanical wear over hundreds of thousands of actuation cycles, ensuring long-term reliability under intensive daily use.
2. Direct Plug-and-Play Installation Architecture
Maintenance efficiency and ease of replacement are paramount for automotive technicians and vehicle owners alike. This assembly is engineered with absolute dimensional fidelity to factory specifications. No need to modify the original car jack. It is more convenient to change the assembly directly without single button disassembly. This direct-replacement design drastically reduces installation time, eliminates the risk of losing small internal springs or contact pads, and ensures a factory-grade fit right out of the box.
By eliminating complex disassembly procedures, repair shops can streamline their workflow, reduce labor costs, and restore vehicle functionality rapidly. Every mounting hole, alignment pin, and housing contour is modeled directly after original equipment parameters to guarantee seamless alignment within the vehicle door panel.
3. Original Mold Plug Compatibility & Wiring Integrity
Electrical modification errors often lead to short circuits, intermittent power losses, or dashboard error codes. To eliminate these hazards, the switch plug is made according to the original car row plug mold without breaking the wire, and can be installed directly. This precise connector matching preserves the integrity of the vehicle's original wiring loom, safeguarding against moisture intrusion, terminal corrosion, and signal degradation over extended operational lifespans.
The robust wired connection mode ensures that electrical currents and digital logic signals pass smoothly between the switch assembly and the vehicle's central body control module. This prevents voltage drops and ensures that auxiliary features, such as integrated LED indicators, operate reliably under all electrical loads.
Material Science & Fabrication Excellence
The foundation of any high-reliability automotive electronic assembly lies in its material composition. The Car Combination Switch PCBA utilizes premium FR-4 base material, renowned for its exceptional mechanical strength-to-weight ratio, superior electrical insulation properties, and outstanding resistance to thermal expansion. In automotive cabins where temperatures can swing drastically from freezing winter mornings to intense summer heatwaves, FR-4 maintains structural stability, preventing warping, delamination, or micro-cracking of internal copper traces.
As a Rigid PCB configured in a multi-layer architecture, the board accommodates complex routing for multiple switch channels, power distribution rails, and LED illumination circuits without expanding its footprint. The outer layers are protected by a vibrant green solder mask that guards against accidental solder bridging, dust accumulation, and chemical exposure from cabin cleaning agents. Clear white silk screen markings provide accurate component designators and polarity indicators, facilitating efficient quality inspection and maintenance tracing.
Furthermore, the exposed copper pads undergo a lead-free HASL (Hot Air Solder Leveling) surface treatment. This environmental-compliant finish delivers superior solderability, protects underlying copper from oxidation, and ensures robust, reliable solder joints that withstand constant mechanical vibration from vehicle engines and road surfaces.
Application Scope & Operational Environment
Primarily designed for integration within the driver-side door panel and dashboard control clusters, this PCBA acts as the central nerve center for the left front main drive button assembly. It processes driver commands for window lifting and lowering, mirror adjustments, and central locking functions depending on the specific vehicle configuration.
The inclusion of a wired connection mode guarantees zero-latency, highly secure signal transmission immune to radio frequency interference (RFI) common in dense urban driving environments. Additionally, the integrated LED indicator functionality provides clear visual feedback for switch status, ensuring effortless night driving visibility and enhancing overall cabin ergonomics and user experience.
Engineered to endure the rigorous demands of daily automotive operation, this assembly withstands thousands of actuation cycles while maintaining consistent electrical conductivity and mechanical resilience. It serves as an indispensable component for automotive manufacturers seeking uncompromised quality and reliability in vehicle interior electronics.
Why Choose Our Car Combination Switch PCBA?
Combining strict adherence to original automotive dimensions, robust multi-layer FR-4 construction, lead-free HASL surface treatment, and hassle-free direct plug-and-play installation, our Car Combination Switch PCBA delivers uncompromising quality for automotive manufacturing, repair, and upgrade projects. Trust in precision engineering designed to keep every journey smooth, responsive, and reliable.
If you have any camping barbeque equipment inquiry, please feel free to contact us.
FR-4 stands out as one of the most versatile options. The composition of an FR-4 printed circuit board comprises a woven glass fabric reinforcement impregnated with a flame-retardant epoxy resin binder.
PCB type: Rigid PCB
Layer: Multi-layer
Base material: FR-4
Solder mask: Green
Silk screen: White
Surface treatment: HASL
