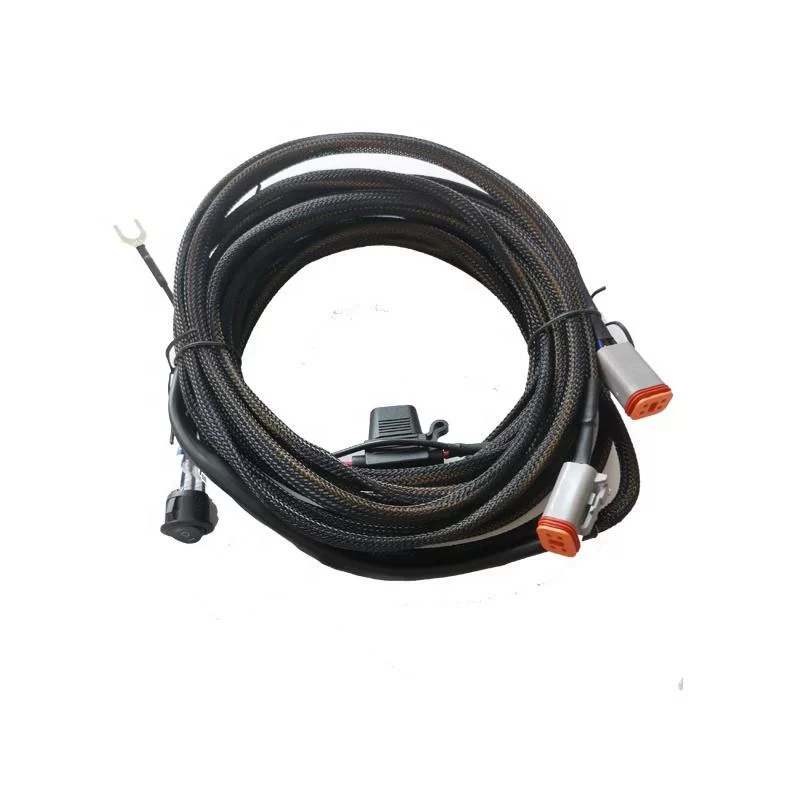

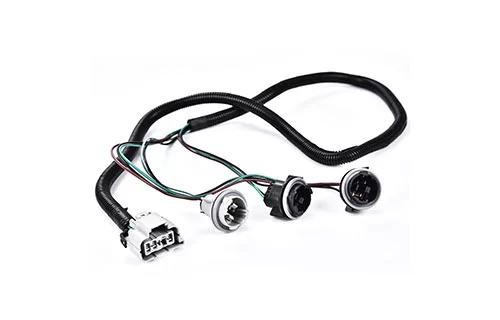

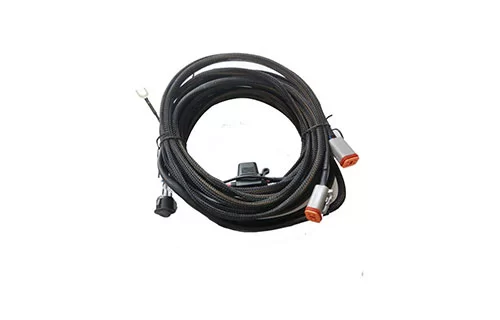

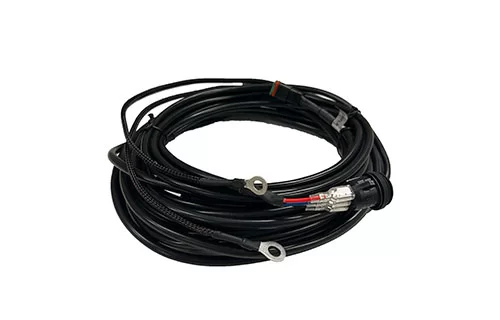

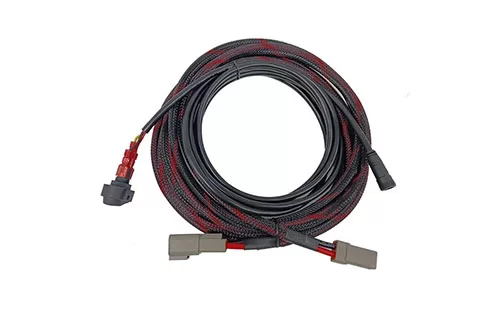

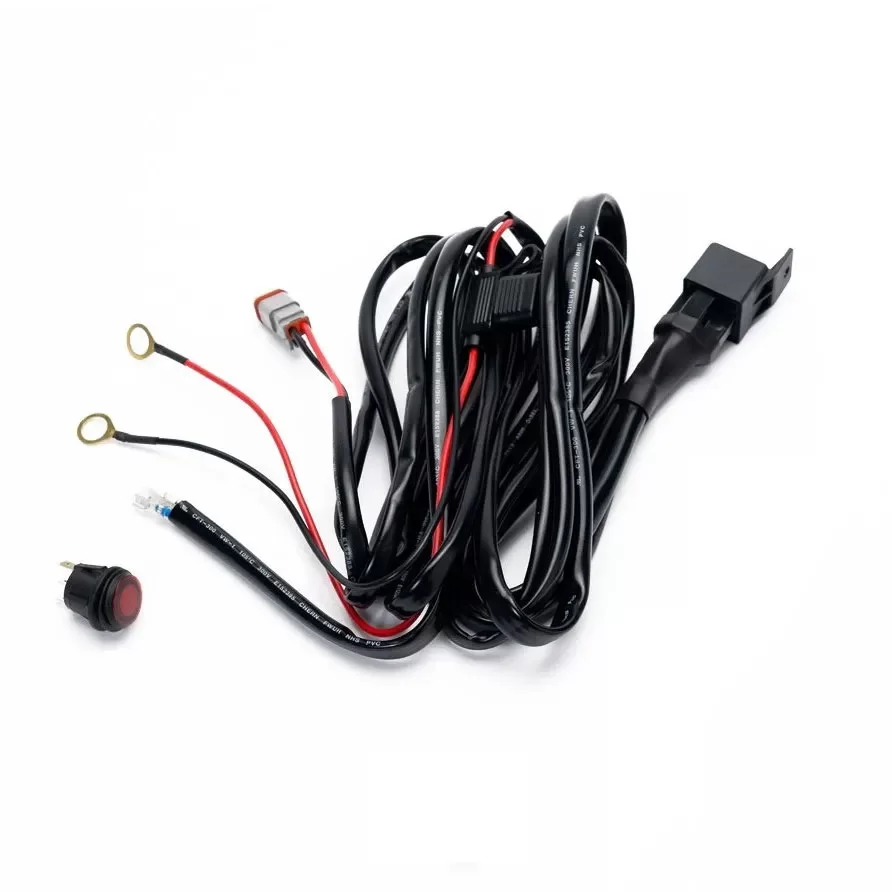

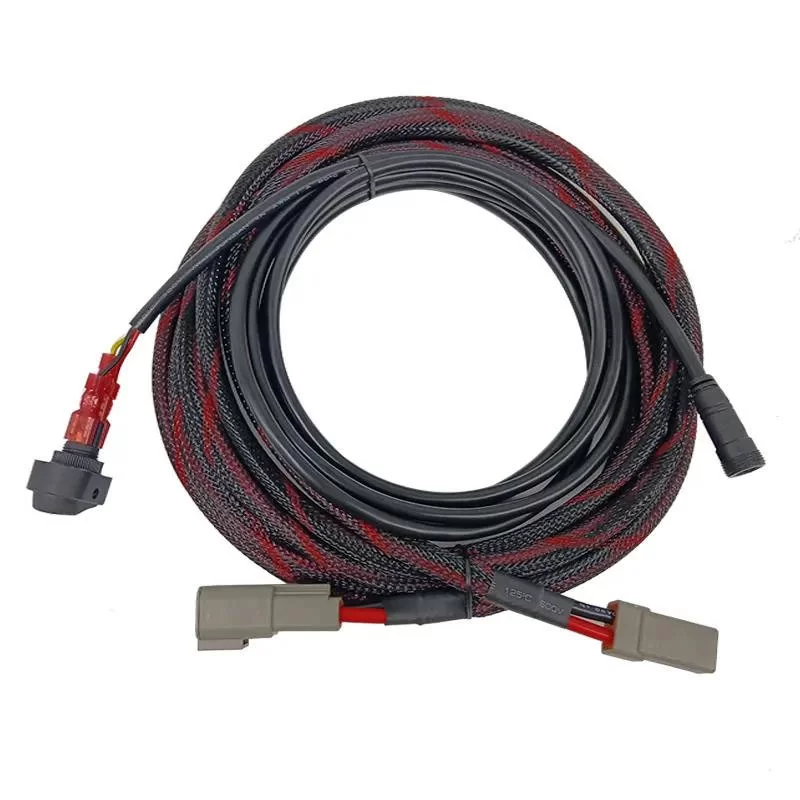

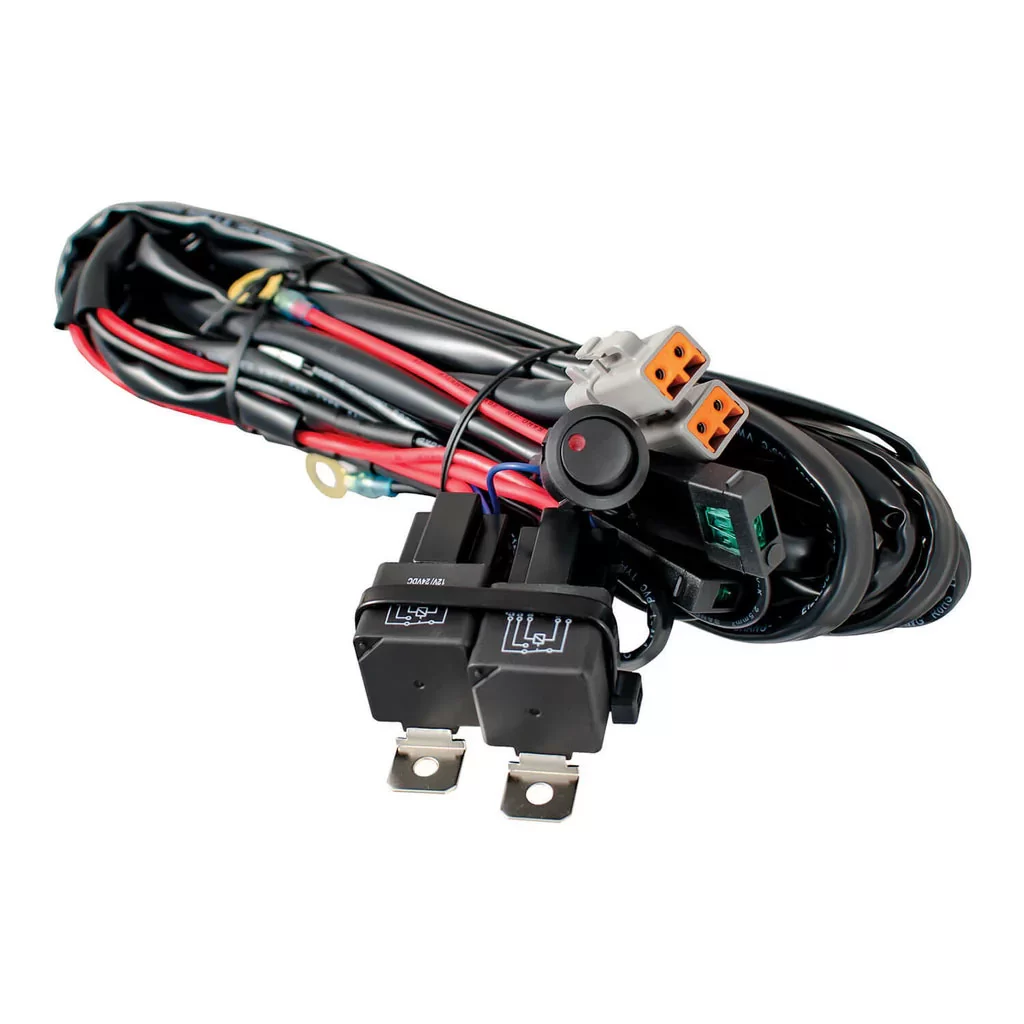

Lighting Wirings Harness
Types
1. Automotive Lighting Harness: Essential for headlights, taillights, and turn signals in automobiles.
2. Aerospace Lighting Harness: Used in aircraft and spacecraft lighting systems.
3. Architectural Lighting Harness: Employed for indoor and outdoor lighting in buildings.
4. Industrial and Commercial Lighting Harness: Utilized in factories, warehouses, offices, and other commercial spaces.
Functions
Power Supply: Transmits electricity to lighting fixtures or systems.
- Connectivity: Establishes connections between fixtures and power sources.
- Protection: Shields wires and connectors from environmental conditions and physical damage.
Advantages
Heat and Corrosion Resistance: Manufactured with heat-resistant and anti-corrosive materials to withstand high temperatures and harsh environmental conditions.
- Flexibility and Vibration Resistance: Designed to handle vehicle vibrations and movements without damage.
- Low Resistance and High Conductivity: Ensuring stable current transmission for consistent lighting performance.
- Easy Installation and Maintenance: Compact design for quick installation and simple maintenance.
- Customization: Tailored to meet the specific requirements of different vehicle models and lighting systems.
Standards
Automotive lighting wiring harnesses must comply with several international standards:
ISO 6722: Specifies temperature and voltage requirements for road vehicle cables.
- SAE J1128: Outlines specifications for low-voltage electrical cables used in vehicle wiring systems.
- ISO 16750: Covers environmental testing for automotive electrical and electronic equipment to ensure reliability under harsh conditions.
- ISO 14572: Pertains to copper conductors and non-shielded low-voltage cables for road vehicles, focusing on heat, oil, and chemical resistance.
- RoHS: Ensures that harmful substances are restricted, making the harness environmentally friendly.
- IATF 16949: A global quality management standard for the automotive industry, ensuring consistency and high standards during the manufacturing process.
