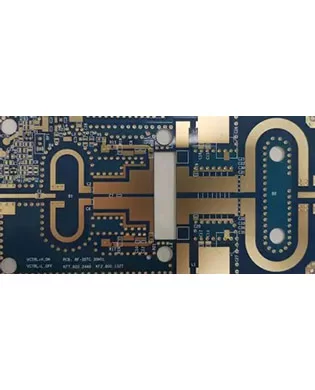

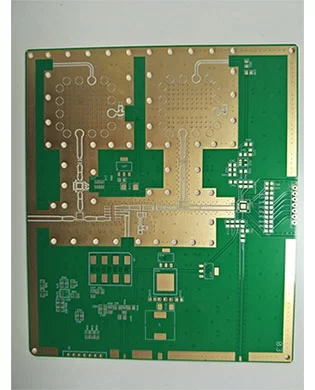

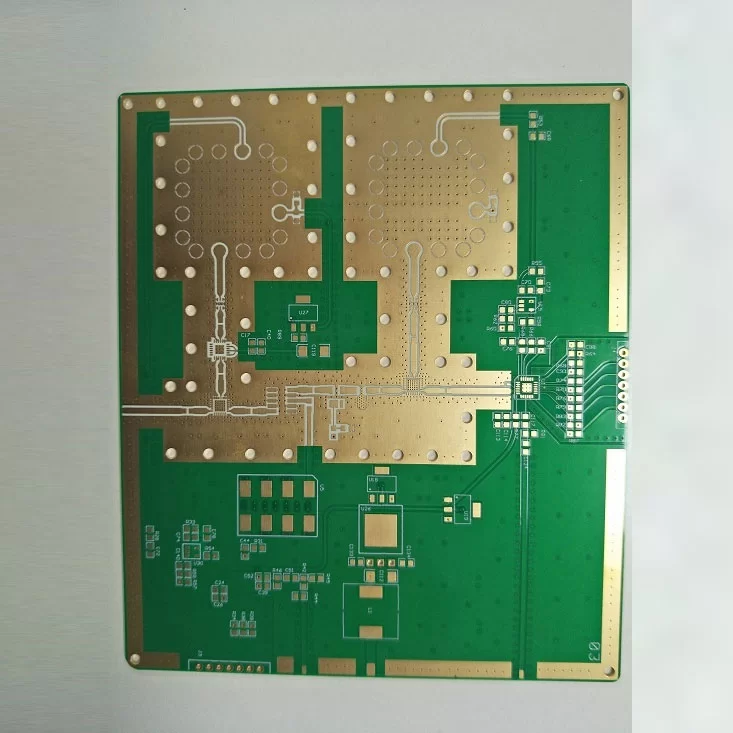

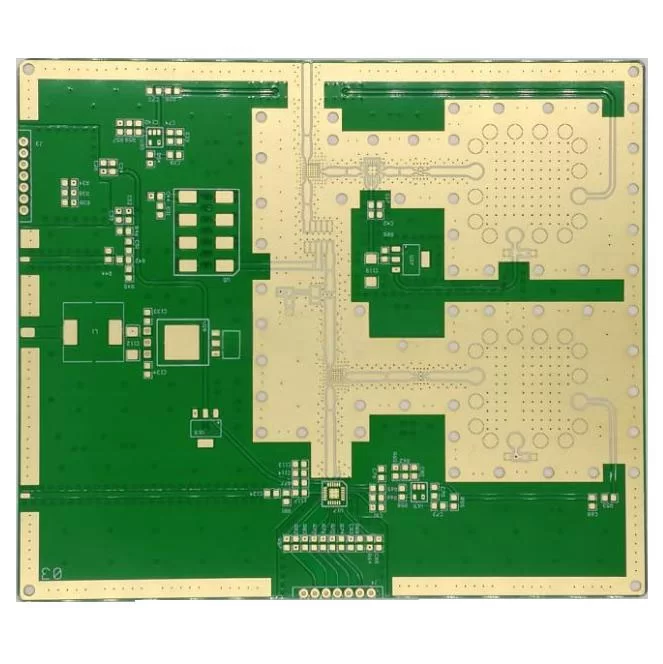

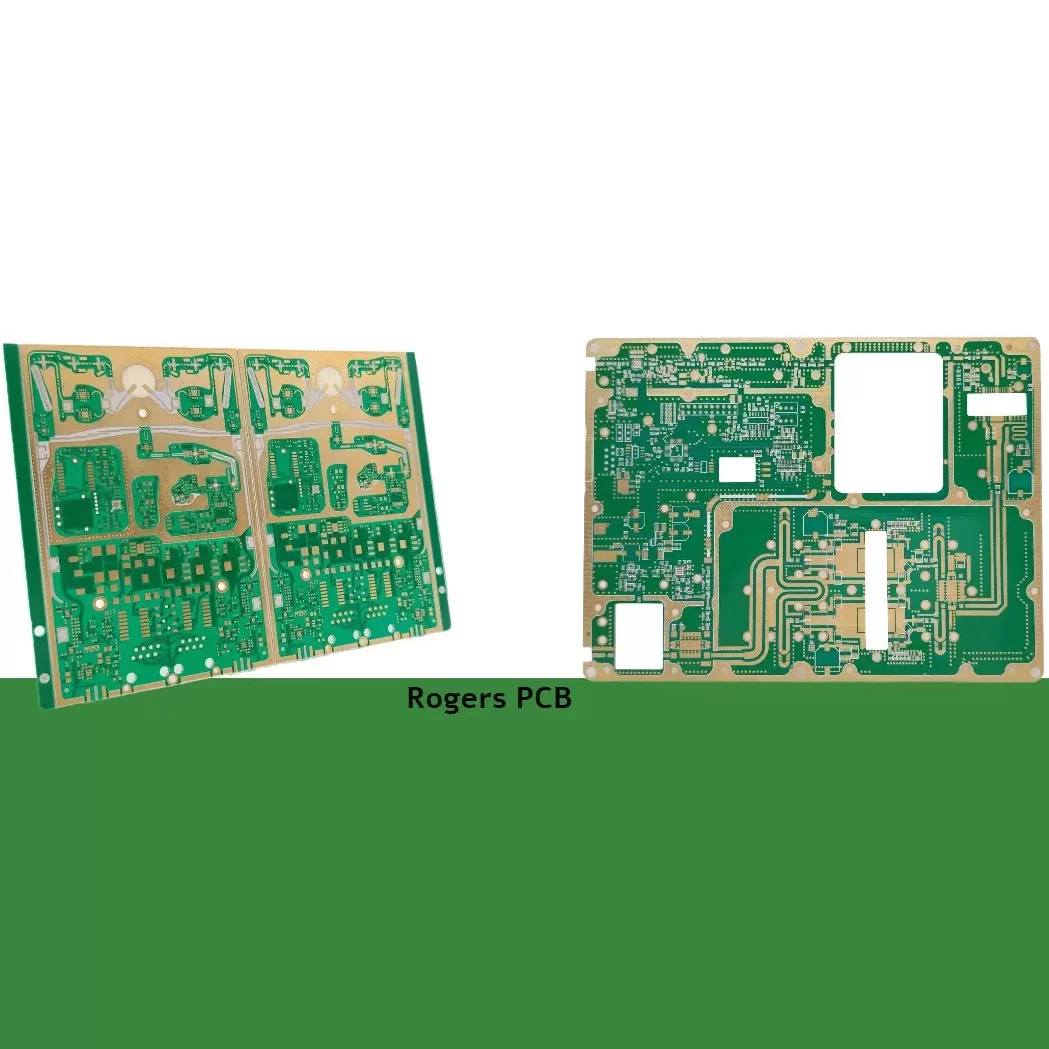

rogers ro4350b pcb

Data Sheet

• Model: Rogers RO4350B

• Material: rogers 4350 material

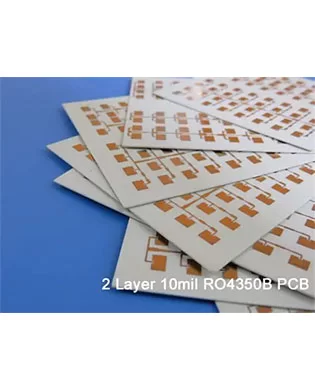

• Layer: 2 layer pcb

• Rogers 4350 dielectric Thickness: 0.254-1.524mm

• Ro4350b dielectric constant: 3.48

• Thermal Conductivity: 0.69w/m.k

• Copper Thickness: Base 0.5OZ, Finised 1OZ

• Finished Thickness: 0.35mm-1.7mm

• Surface Treatment: Immersion Gold/Silver

• Trace/ Spacing: 4mil/4mil




About RO4350B

RO4350B laminates offer tightly controlled dielectric constants (Dk) and low loss characteristics, and can be processed using the same methods as standard epoxy/glass. Unlike PTFE, RO4350B laminates do not require specialized through-hole processing or handling procedures, resulting in significantly lower processing costs than traditional microwave laminates. The material also achieves a UL 94 V-0 flame retardancy rating, making it suitable for active device and high-power RF designs.

Advantages

• Low RF loss

• Minimal dielectric constant fluctuation with temperature

• Low z-axis thermal expansion coefficient


• Low board expansion coefficient

• Low dielectric constant tolerance

• Stable electrical characteristics at different frequencies

• Easy to mass produce and multi-layer mixing, high cost-effectiveness


Applications

Cellular base station antennas,Power amplifiers, Microwave(P2P)connections, Automotive radars and sensors,

Radio frequency identification (RFID) tags, Real-time satellite LNBs

Characteristics

• Dk 3.48 +/- 0.05


• Df 0.0037 @ 10 GHz

• Z-axis thermal expansion coefficient 32 ppm/°C
