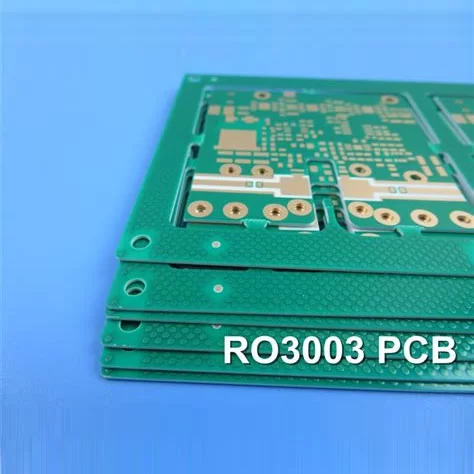

rogers ro3003 pcb

Advanced Rogers RO3003 High-Frequency PCB Solutions for 77 GHz Automotive Radar and 5G Infrastructure

The Rogers RO3003 ceramic-filled PTFE composite laminate is an industry standard engineered for high-frequency microwave and millimeter-wave circuit designs. At PrintedBoardAssembly, our advanced custom Rogers RO3003 PCB manufacturing services deliver superior dielectric stability, exceptionally low insertion loss, and robust mechanical reliability tailored for high-performance automotive radar, advanced driver assistance systems (ADAS), and next-generation telecommunications infrastructure.

Technical Specifications & Core Manufacturing Parameters

To ensure optimal electrical performance and stringent impedance control for high-frequency components, our 2-layer Rogers RO3003 circuit boards are fabricated to rigorous industrial standards:

• Substrate Material: Rogers RO3003 High-Frequency Laminate

• Dielectric Constant (Dk): 3.0 ±0.04 (Exceptionally stable across temperature and frequency ranges)

• Layer Configuration: 2-Layer PCB (2L)

• Dielectric Thickness: 0.75 mm (30 mil)

• Finished Board Thickness: 0.85 mm

• Base Copper Thickness: 0.5 OZ (17 um)

• Finished Copper Thickness: 1 OZ (35 um)

• Surface Treatment: Immersion Gold (ENIG) for superior solderability, wire bonding, and anti-oxidation protection

• Solder Mask Color Options: Green or White

• Minimum Trace/Space Resolution: 5 mil / 5 mil

• Primary Applications: 77 GHz automotive radar, RF directional couplers, and industrial radar level gauges

Key Engineering Advantages of Rogers RO3003 Laminates

Hardware design engineers select Rogers RO3003 when signal integrity, thermal stability, and mechanical dependability cannot be compromised. The material offers profound performance benefits:

• Superior Dk Thermal Stability: RO3003 laminates provide exceptional dielectric constant stability across a wide temperature and frequency spectrum. This eliminates the temperature-dependent step changes in Dk typically experienced with standard PTFE materials, preventing phase distortion in high-frequency circuits.

• Lowest Commercial Insertion Loss: As one of the lowest loss commercial laminates available, it ensures minimal signal attenuation across millimeter-wave frequencies, maximizing power efficiency in RF front-ends.

• Robust Z-Axis Thermal Expansion: Featuring a tightly controlled low Z-axis Coefficient of Thermal Expansion (CTE), Rogers RO3003 provides outstanding plated through-hole (PTH) reliability during aggressive thermal cycling and multi-reflow assembly processes.

• Consistent Mechanical Integrity: The uniform distribution of ceramic filler ensures predictable mechanical processing, clean laser/mechanical drilling, and precise micro-strip fabrication.

Mission-Critical Applications Across High-Growth Sectors

Rogers RO3003 printed circuit boards are deployed extensively in high-reliability environments where sub-nanosecond signal propagation and fail-safe operation are mandatory:

• Automotive ADAS & 77 GHz Radar: Essential for adaptive cruise control systems, forward collision warning modules, active brake assist, and lane change monitoring sensors.

• 5G Telecommunications Infrastructure: Deployed in high-frequency power amplifiers, cellular base station antennas, and point-to-point microwave communication links.

• Industrial Instrumentation: Utilized in high-precision radar gauges, remote sensing monitors, and aerospace guidance links.

Manufacturing Quality, Compliance & Quality Assurance

At PrintedBoardAssembly, every custom Rogers RO3003 PCB undergoes strict industrial quality validation. We operate in full compliance with ISO9001 quality management systems and adhere strictly to IPC-A-610 electronic acceptance standards. Our modern production facilities leverage laser via drilling, high-precision chemical etching, and automated optical inspection (AOI) to guarantee that every manufactured board meets your exact electrical parameters. Upload your Gerber files and material BOM today for an immediate, engineering-backed fabrication quote.
