Multilayer FR4 PCB

Advanced Multilayer FR4 PCB Manufacturing & High-Density Assembly Solutions

Engineered for complex electronic systems, high-performance computing hardware, and demanding industrial applications, PrintedBoardAssembly delivers high-reliability Multilayer FR4 PCBs. By leveraging advanced inner-layer routing and precision lamination techniques in accordance with rigorous PCB design rules, our multilayer circuit boards maximize spatial efficiency while providing superior electrical performance, mechanical robustness, and thermal management.

Comprehensive Technical Specifications & Material Parameters

To support intricate circuit architectures, high component densities, and robust power delivery networks, our multilayer FR4 circuit boards are manufactured under strict industrial standards and precision controls:

• Product Model: Multilayer FR4 PCB

• Substrate Material: High-grade FR-4 glass-epoxy laminate (offering exceptional mechanical strength, dimensional stability, and electrical insulation)

• Layer Configuration: Scalable multi-layer stack-ups (ranging from 4 layers up to advanced high-layer-count architectures) with precision-aligned conductive copper planes

• Copper Weight Options: Customizable inner and outer layer copper thicknesses (e.g., 1OZ to 2OZ or heavier) optimized for high-current distribution and signal integrity

• Surface Treatment Options: Immersion Gold (ENIG), HASL, OSP, and Silver plating to ensure flat coplanarity, robust solderability, and superior oxidation resistance

• Min Trace / Min Space: High-density interconnect (HDI) capabilities supporting fine-pitch routing and micro-via integration

• Primary Advantage: Maximized functional integration within minimized physical board footprints

Engineering Architecture & Core Advantages of Multilayer FR4 PCBs

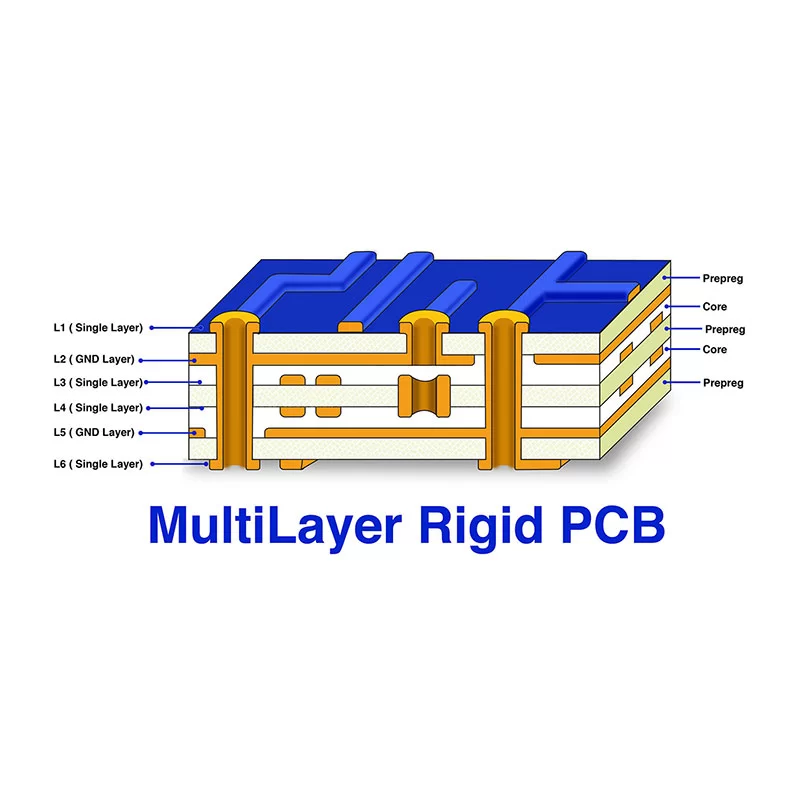

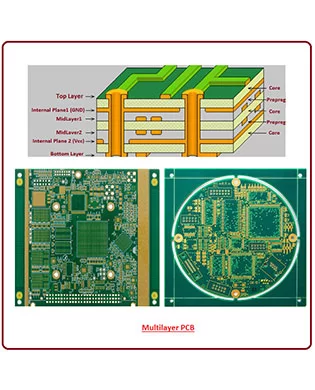

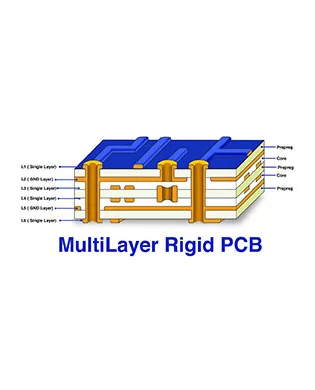

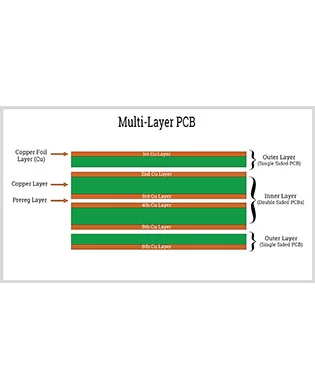

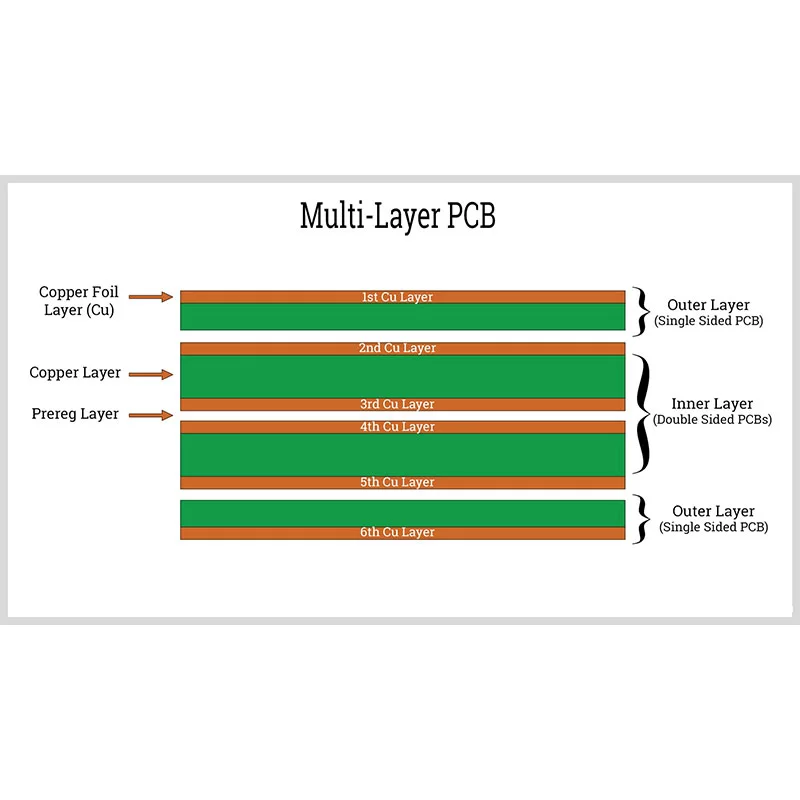

Multilayer printed circuit boards represent the backbone of modern electronics, allowing designers to transcend the spatial limitations of traditional single-sided and double-sided boards. By stacking alternating layers of conductive copper and insulating FR-4 prepreg, our multilayer architecture delivers exceptional engineering benefits:

• Minimized PCB Footprint: Utilizing internal power, ground, and signal planes allows hardware engineers to significantly reduce overall board dimensions, fitting complex circuitry into compact enclosures.

• High Component Density: Multiple routing layers accommodate dense arrangements of surface-mount devices (SMD), fine-pitch ICs, and BGAs without causing routing congestion.

• Enhanced Functional Integration: Additional routing channels enable more interconnections between electronic components, supporting advanced processing capabilities and multi-feature system designs.

• Powerful Electrical Performance: Dedicated internal reference planes provide controlled impedance environments, minimize electromagnetic interference (EMI), and ensure clean, stable power distribution to high-speed processors.

• Superior Thermal Conductivity & Mechanical Strength: Multi-layer copper distribution effectively dissipates heat away from high-power components, while the rigid FR-4 substrate provides robust mechanical strength capable of supporting heavy components and withstanding operational stress.

Overcoming Manufacturing Challenges: Precision Processing

While multilayer FR4 PCBs offer unparalleled performance, their production involves a significantly more complex and lengthy manufacturing workflow compared to single-layer boards. The multi-step fabrication process requires meticulous alignment during inner-layer imaging, precise multi-cycle pressing, controlled depth drilling, and stringent plating protocols.

At PrintedBoardAssembly, we utilize state-of-the-art automated optical alignment systems, high-speed CNC drilling rigs, and vacuum lamination presses to overcome these manufacturing hurdles. This rigorous process control ensures perfect layer-to-layer registration, flawless via barrel plating, and zero internal delamination, turning the inherent complexities of multilayer fabrication into a reliable, repeatable advantage for our clients.

Rigorous Quality Assurance & Multi-Stage Testing Protocols

Zero-defect manufacturing is essential for mission-critical hardware deployments. Every production batch of Multilayer FR4 PCBs undergoes an exhaustive testing regime prior to dispatch:

• Automated Optical Inspection (AOI): High-resolution laser scanning of inner and outer layers to detect trace anomalies, etching defects, or bridging before lamination.

• X-Ray Inspection: Non-destructive verification of multi-layer alignment and internal plane registration.

• Flying Probe & Fixture Electrical Testing: 100% open and short-circuit verification confirming complete electrical continuity across all nets.

• Thermal Stress & Solderability Testing: Simulating aggressive assembly environments to guarantee robust joint reliability and board integrity.

Extensive Industry Applications

Our multilayer FR4 circuit boards are trusted across a wide spectrum of high-reliability industries and commercial sectors:

• Computer & Data Storage: Motherboards, server management cards, and high-speed memory modules.

• Telecommunications: Network switches, routers, base station hardware, and signal repeaters.

• Industrial Automation: Programmable logic controllers (PLCs), robotics controllers, and heavy machinery power units.

• Automotive Electronics: Advanced driver-assistance systems (ADAS), infotainment hubs, and body control modules.

• Medical Equipment: Diagnostic imaging systems, patient monitoring terminals, and portable therapeutic devices.

Turnkey SMT Assembly & Manufacturing Capabilities

As a premier Electronic Manufacturing Service (EMS) provider, PrintedBoardAssembly offers an integrated, end-to-end manufacturing workflow. Combining precision bare-board fabrication with high-speed Surface Mount Technology (SMT) and Through-Hole (DIP) assembly, we manage everything from component sourcing to final functional testing.

Equipped with advanced pick-and-place machinery, automated solder paste inspection (SPI), multi-zone convection reflow ovens, and real-time AOI verification, we seamlessly execute complex fine-pitch IC placement, micro-BGA mounting, and rigid box-build integration. Partner with PrintedBoardAssembly to optimize your supply chain, accelerate your time-to-market, and ensure absolute hardware dependability. Contact our engineering team today to review your Gerber files and secure a rapid prototype quotation.
