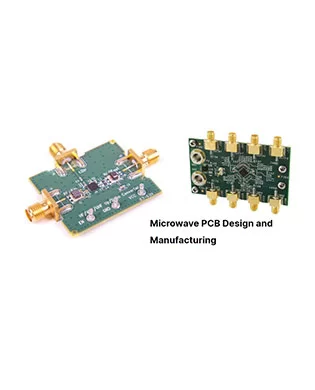

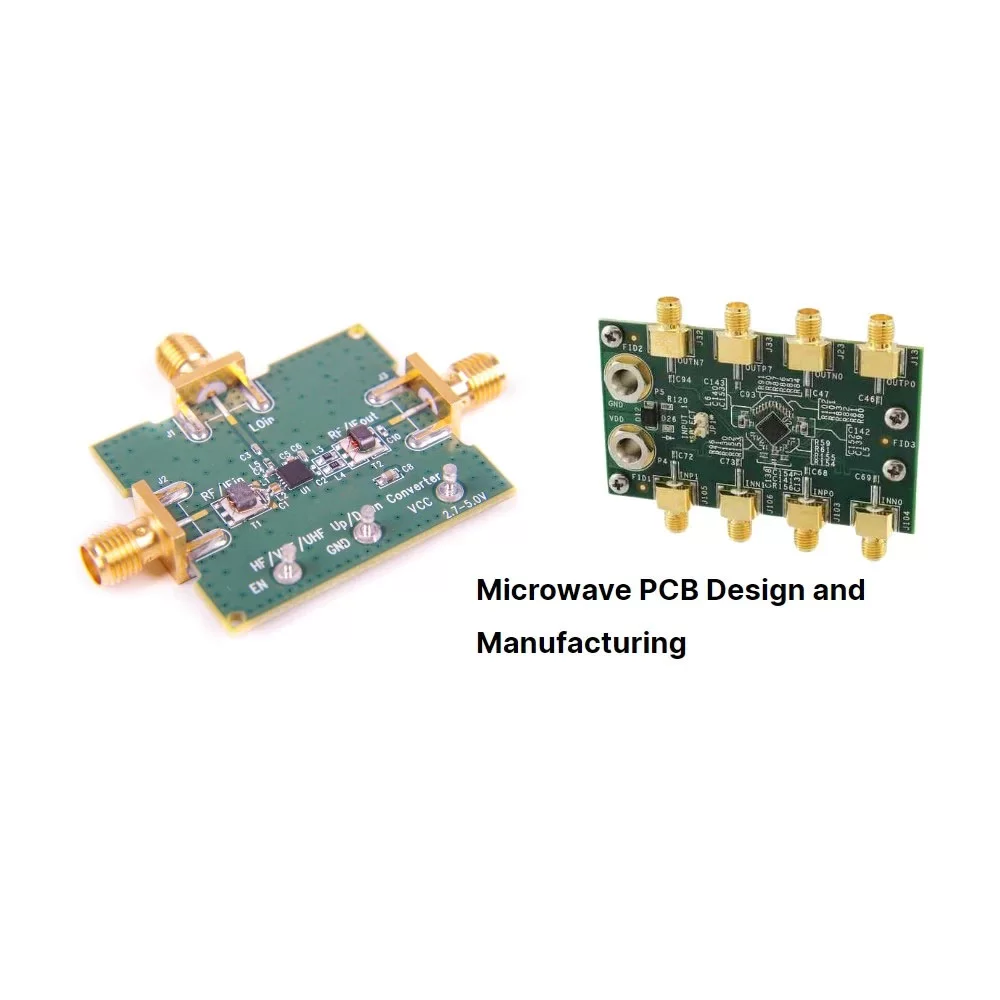

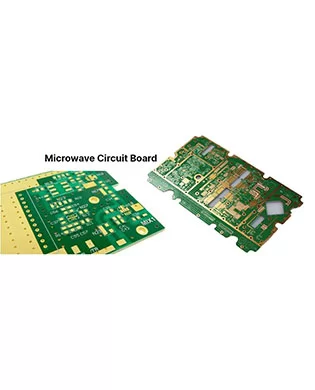

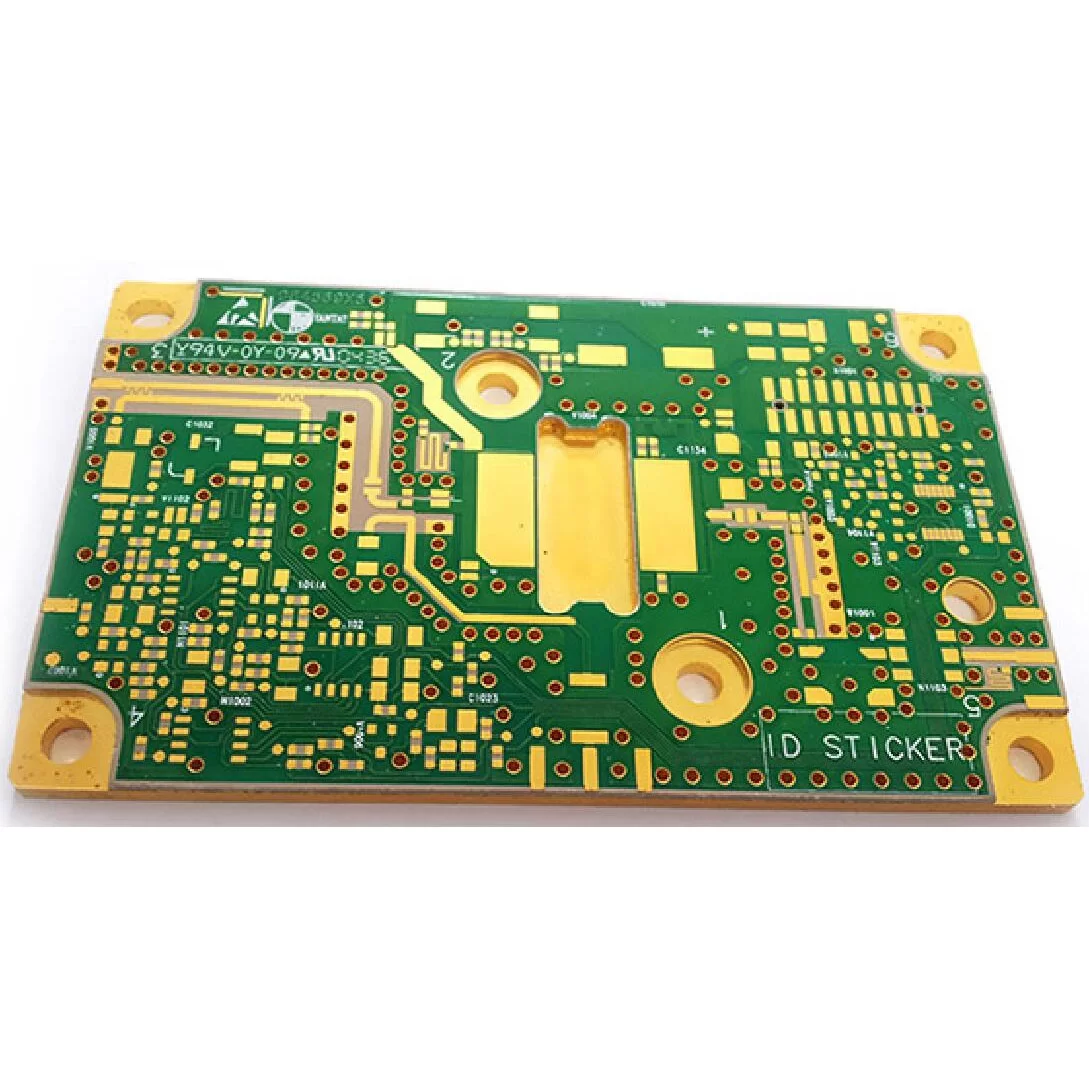

Microwave Circuit PCB

Data Sheet

• Model: Microwave circuit PCB

• Material: Telfon, PTFE, Ceramics


• Quality standard: IPC 6012 Class2

• PCB DK: 2.0-1.6

• Layers: 1 Layer pcb-36 layer pcb

• Thickness: 0.254mm-12mm

• Copper thickness: base copper 0.5oz/ 1oz

• Surface technology: Silver, Gold, OSP

• Special process: mixed material, stepped groove

• Application: Microstrip antenna, Radar PCB




Microwave PCB is a specialized printed circuit board designed to handle high-frequency signals, typically ranging from 50 MHz to above 2 GHz. Their focus on low dielectric loss, impedance control, and precise signal transmission. They often utilize advanced materials like PTFE, ceramics, or hybrid laminates that combine FR-4 and PTFE layers to achieve superior performance.

These boards are essential in applications where signal integrity is critical, such as telecommunications, aerospace, and medical devices.

Advantages

Microwave PCBs offer numerous advantages that make them an indispensable component of modern electronics applications. These include:

• Microwave PCBs are designed to operate efficiently at high frequencies, ensuring minimal signal loss, low distortion, and reliable performance.

• The precision design and advanced materials used in microwave PCBs ensure accurate signal transmission and processing, making them an ideal choice for applications requiring high precision and reliability.


• Strict manufacturing processes and high-quality materials ensure that microwave PCBs meet stringent performance and reliability standards, reducing the risk of failure in real-world applications.

• Microwave PCBs can be used in a wide range of applications, from telecommunications to radar systems and medical devices, making them versatile and adaptable to diverse industry needs.

• The use of standardized manufacturing processes and materials in microwave PCBs enables cost-effective production, making them an economical choice for high-volume electronics applications.
