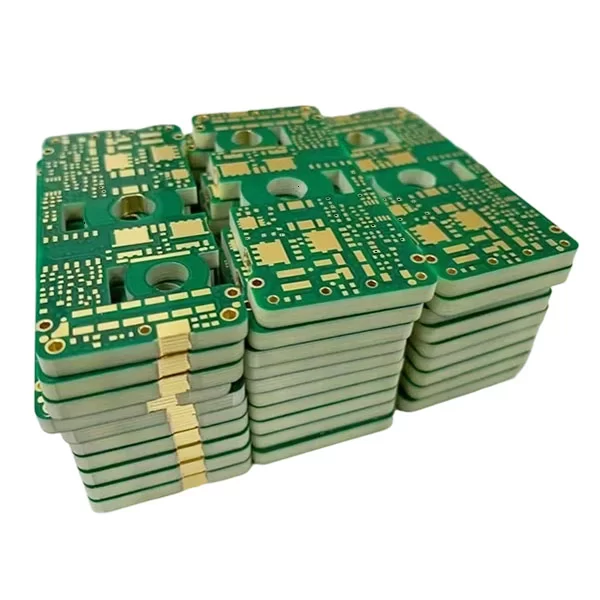

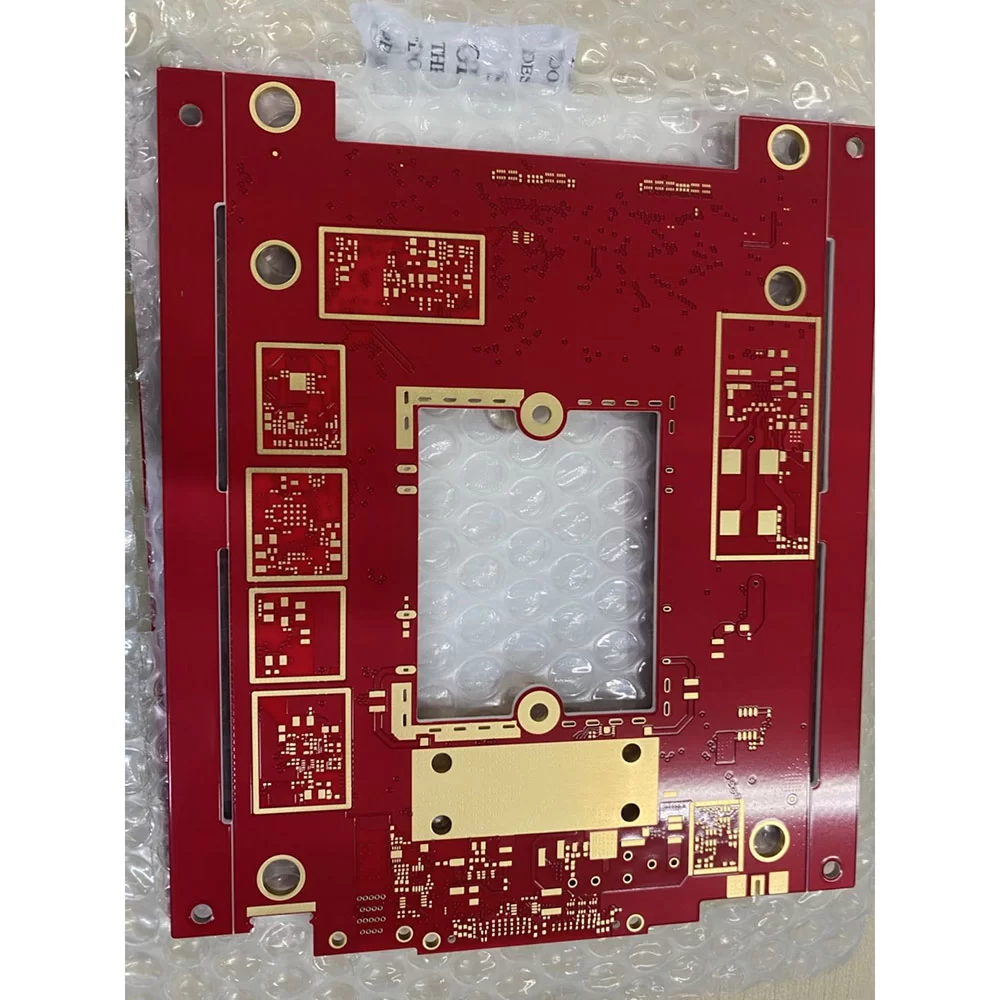

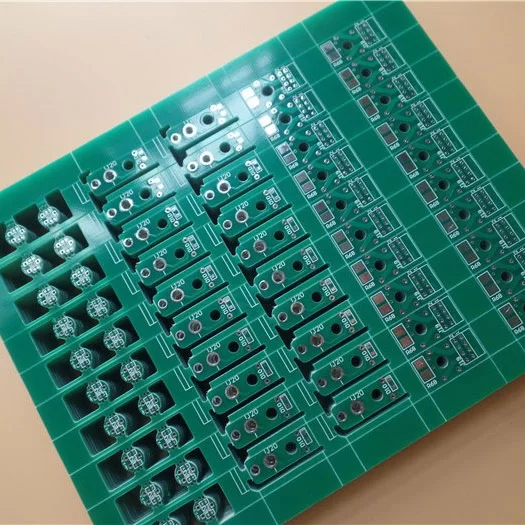

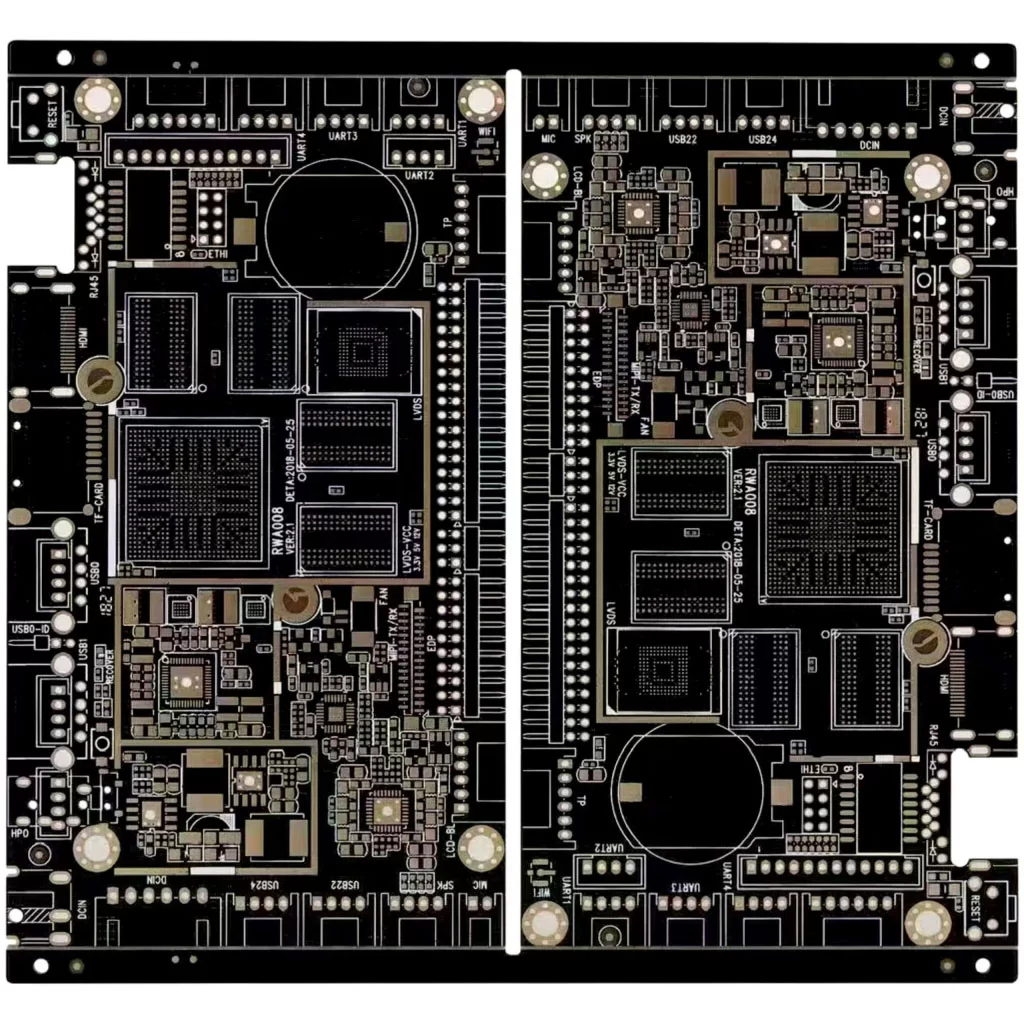

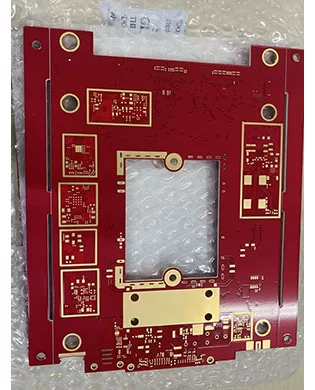

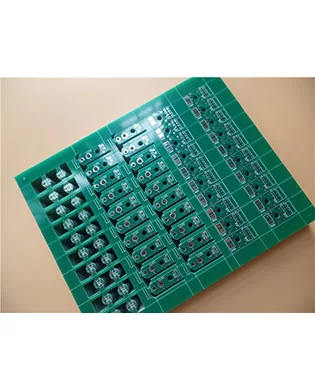

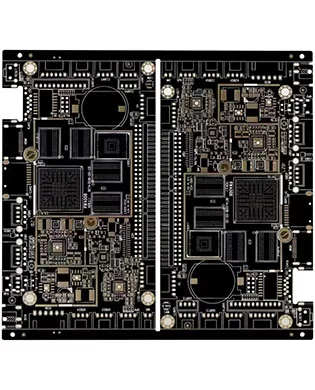

High TG FR4 PCB

What's High Tg PCB?

High Tg PCBs are PCBs made up of materials that combine high dimensional stability (rigidity) with a high glass transition temperature (Tg). This PCBs are one of the unique PCBs that can withstand and maintain performance at elevated temperatures.

The temperature of High Tg PCBs can range from 170 °C to 260 °C.  The temperature range of standard PCBs is only about 130 °C to 140 °C. They are available in different types – single-layer, double-layer, or multilayer and can be used in all sorts of setups.

Advantages

• Enhanced Thermal Stability: As compared to 130-150°C for standard FR-4, high Tg PCBs have a Tg exceeding 180°C. This means they can handle higher operating temperatures without warping, softening, or experiencing electrical failures.


• Excellent Chemical Resistance: High Tg materials usually use special epoxy resins or strong polymers that can resist a wider range of chemicals compared to the standard FR-4 material with its brominated epoxy resin. These materials have a denser structure, which means they don't let corrosive liquids seep in easily and helps protect copper traces and internal parts from damage.

• Better stability: In addressing moisture and heat challenges,  PCBs with higher Tg levels work better. So, using a high Tg PCB substrate is a safer bet.





Application

• Automotive Electronics


• Oil and Gas Industry

• Aerospace and Defense

• Industrial Electronics

• Medical Applications

• Electronics Test Equipment

• Consumer Electronics





Disadvantages

• Signal Loss


  The dielectric properties of high Tg PCB materials differ from those of standard PCB materials. This increases the likelihood of high-frequency signal loss and may compromise the performance of high-speed electronic circuits.

• Limited Flexibility

  High Tg PCBs are rigid, but their flexibility and mobility are inferior to ordinary PCBs. This is a limited for applications that require a bit of flexible circuit fabrication.
