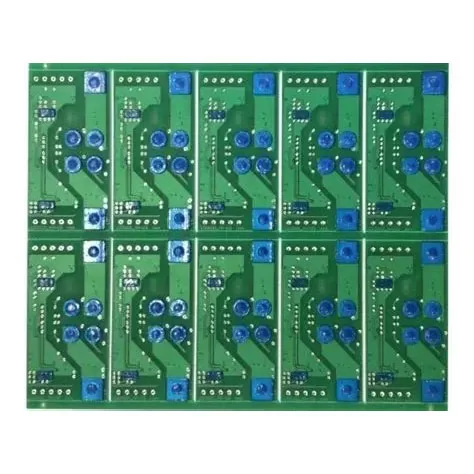

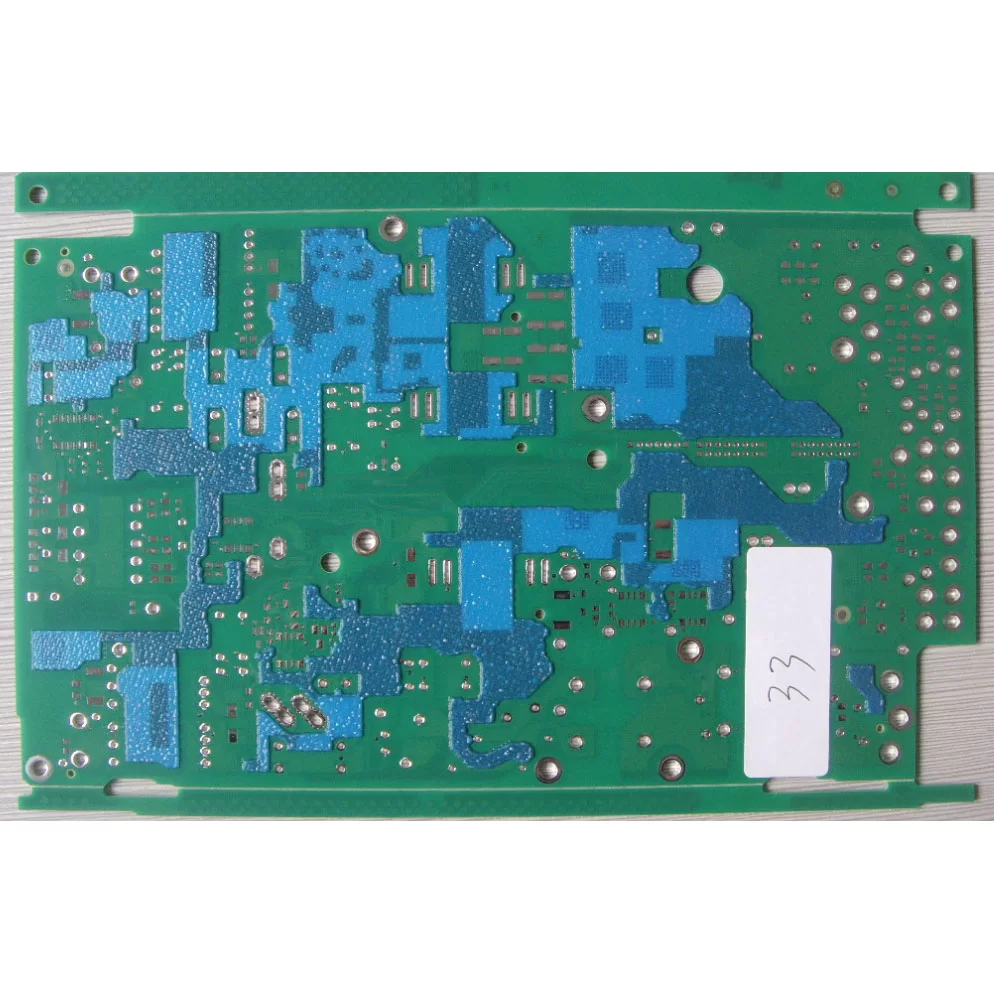

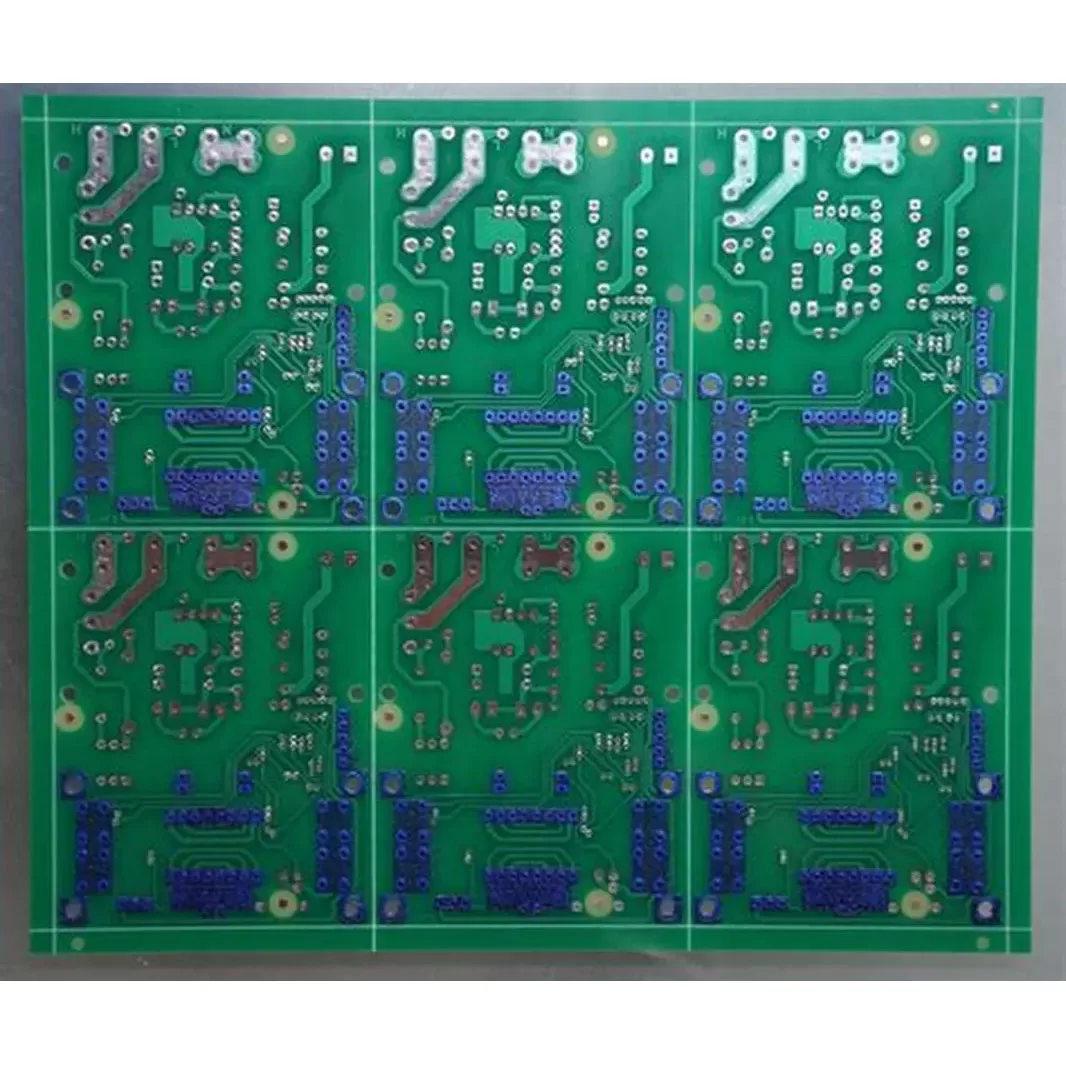

Blue Peelable Printed Circuit Boards

What is a Peelable Solder Mask?

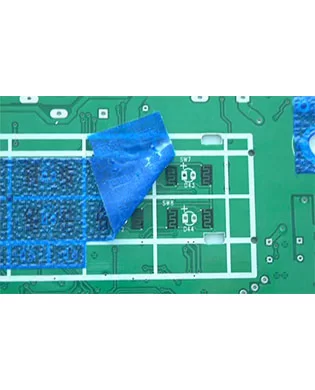

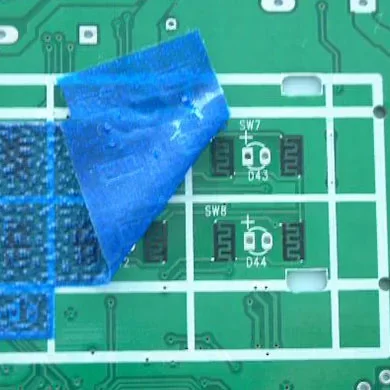

A peelable solder mask is a temporary protective coating applied to specific areas of a PCB during the manufacturing process. Unlike traditional permanent solder masks, peelable masks are designed to be easily removed after serving their protective purpose.

Key Features of Peelable Solder Masks:

• Temporary protection for PCB surfaces

• Easy application and removal

• Resistant to high temperatures and chemicals

• Prevents solder bridging and component misalignment

• Leaves no residue upon removal

• Peelable solder masks act as a shield, safeguarding critical areas of the PCB from damage, contamination, and unwanted solder during various stages of the assembly process.


Why Use Peelable Solder Masks in PCB Manufacturing?

 The adoption of peelable solder masks in PCB manufacturing has grown significantly due to the numerous benefits they offer. Let’s explore the key advantages that make peelable solder masks an essential tool in modern electronics production.

• Precision Protection


  Peelable solder masks allow manufacturers to selectively protect specific areas of the PCB, ensuring that only intended areas are exposed to soldering processes. This precision is crucial for:

  Preventing solder bridges between closely spaced components

  Protecting delicate surface-mount pads

  Safeguarding plated through-holes from solder ingress

• Enhanced Quality Control

  By using peelable solder masks, manufacturers can:

  Reduce defects caused by excess solder

  Minimize component misalignment issues

  Improve overall PCB assembly quality

• Cost-Effective Solution


  Implementing peelable solder masks in the PCB assembly process can lead to significant cost savings:

  Reduced rework and repair costs

  Fewer scrapped boards due to assembly errors

  Increased production efficiency

• Versatility in Manufacturing Processes


  Peelable solder masks are compatible with various PCB manufacturing and assembly techniques, including:

  Wave soldering

  Reflow soldering

  Selective soldering

  Hand soldering

• Environmental Considerations


  Many peelable solder mask formulations are environmentally friendly, offering:

  Low volatile organic compound (VOC) emissions

  Easy disposal without harmful residues

  Compliance with RoHS and REACH regulations

Types of Peelable Solder Masks

Peelable solder masks come in various types, each designed to meet specific manufacturing requirements and PCB designs. Understanding these types can help in selecting the most appropriate mask for a given application.

• Liquid Peelable Solder Masks

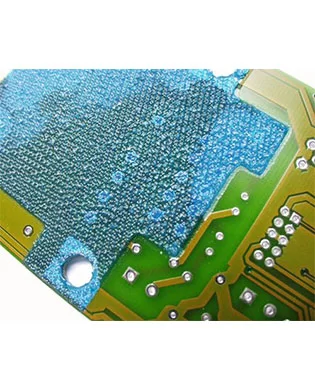

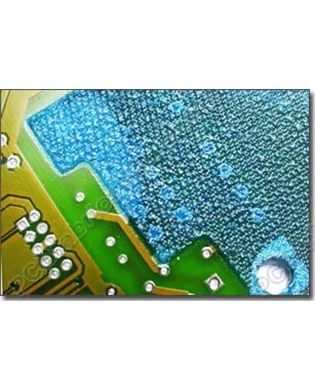

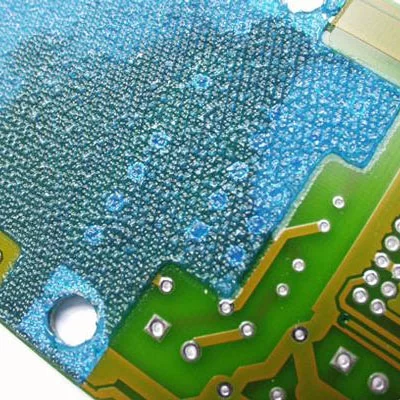

  Liquid peelable masks are applied in a liquid form and then cured to create a protective layer.

  Advantages:

  Can be easily applied using screen printing or spraying techniques

  Excellent conformity to PCB surface contours

  Suitable for both small and large areas of coverage

  Applications:

  High-volume PCB production

  Complex PCB layouts with varying surface topographies

• Film-Based Peelable Solder Masks


  These masks come in the form of pre-cut films that are applied to the PCB surface.

  Advantages:

  Quick and easy application

  Uniform thickness across the protected area

  Ideal for protecting large, flat areas of the PCB

  Applications:

  Batch production of PCBs with similar designs

  Protection of entire PCB sides during double-sided assembly

• Heat-Resistant Peelable Solder Masks


  Specially formulated to withstand high temperatures encountered in soldering processes.

  Advantages:

  Can withstand temperatures up to 300°C or higher

  Excellent protection during reflow and wave soldering

  Maintains integrity through multiple heat cycles

  Applications:

  High-temperature soldering processes

  Multi-layer PCB assembly with multiple reflow cycles

• Chemical-Resistant Peelable Solder Masks


  These masks offer protection against various chemicals used in PCB manufacturing.

  Advantages:

  Resistant to flux, cleaning solvents, and other PCB chemicals

  Maintains integrity during chemical processes

  Prevents chemical ingress into protected areas

  Applications:

  PCBs undergoing chemical cleaning processes

  Boards exposed to harsh environmental conditions
