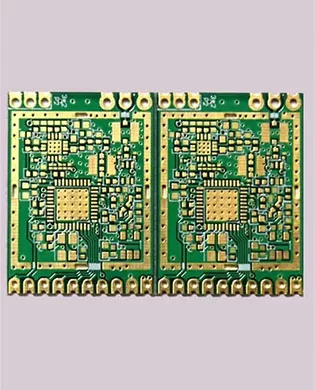

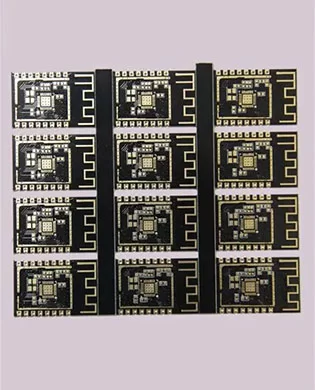

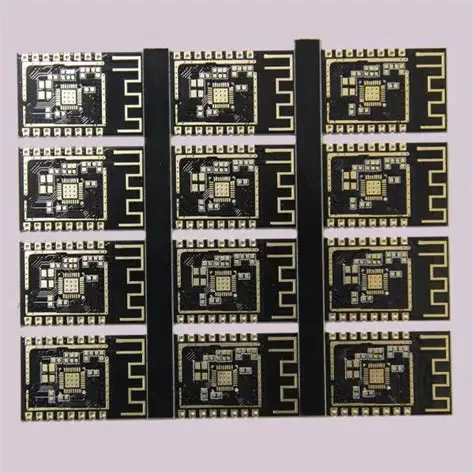

4L 1+N+1 HDI Half Hole Wifi Module PCB

Parameter

• Model: 4L 1+N+1 Wifi Module PCB

• Material: ITEQ FR4
• Layer: 4L1+N+1 HDI
• Color: Black /White
• Finished Thickness: 0.8mm
• Copper Thickness: inner1OZ ; outer0.5OZ
• Surface Treatment: Immersion Gold+OSP
• Min Trace/ Space: 3mil/3mil
• Min Hole: Mechanical hole 0.2mm, Laser Hole 0.1mm
• Application: Wifi Module

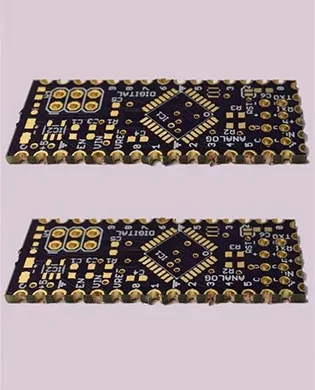

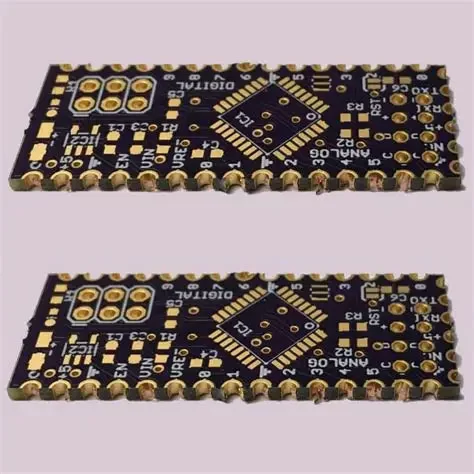

• Specail Process: Half hole package edge.





What's WiFi module?

WiFi module, also called a serial port Wi-Fi module, falls under the IoT transmission layer. It converts serial port or TTL levels into an embedded module that complies with Wi-Fi wireless network communication standards, with a built-in IEEE 802.11b/g/n wireless network protocol stack and TCP/IP protocol stack.

Embedded Wi-Fi modules enable traditional hardware devices to connect directly to the Internet via Wi-Fi, and are key components for realizing IoT applications such as smart homes and M2M (Machine-to-Machine) communication.

Wi-Fi module PCBs can be divided into three categories:

• General-Purpose Wi-Fi Module PCBs: Examples include the USB or SDIO interface modules on mobile phones, laptops, and tablets. Their Wi-Fi protocol stacks and drivers run on Android, Windows, and iOS systems, requiring a highly powerful CPU to support applications.

• Router-Solution Wi-Fi Module PCBs: Typical examples are home routers. Their protocols and drivers operate on chips with ample flash memory and Linux systems.
• Embedded Wi-Fi Module PCBs: They feature a 32-bit MCU, integrated Wi-Fi drivers and protocols, and use common MCU interfaces such as UART. They are suitable for various smart home and smart hardware products.
