In the era of the Internet of Things (IoT), data has become a vital global currency. From the smart thermostats regulating our homes to the high-precision vibration monitors embedded in jet engines, the ability to collect environmental data is paramount. At the heart of this technological revolution lies the sensor pcb.
A sensor pcb (Sensor Printed Circuit Board) is a specialized platform engineered to interface with various sensing elements, converting physical phenomena—such as heat, light, or pressure—into electrical signals that digital systems can process.
What is a Sensor PCB?
A sensor pcb is a high-performance circuit board specifically designed to measure and collect data from the surrounding environment. Unlike standard PCBs, which primarily provide electrical connectivity and mechanical support for components, a sensor board is optimized for signal sensitivity and environmental interaction.
These boards act as a bridge between the physical and digital worlds, integrating microscopic sensing elements with signal-conditioning circuitry to ensure that data acquisition is both accurate and reliable.

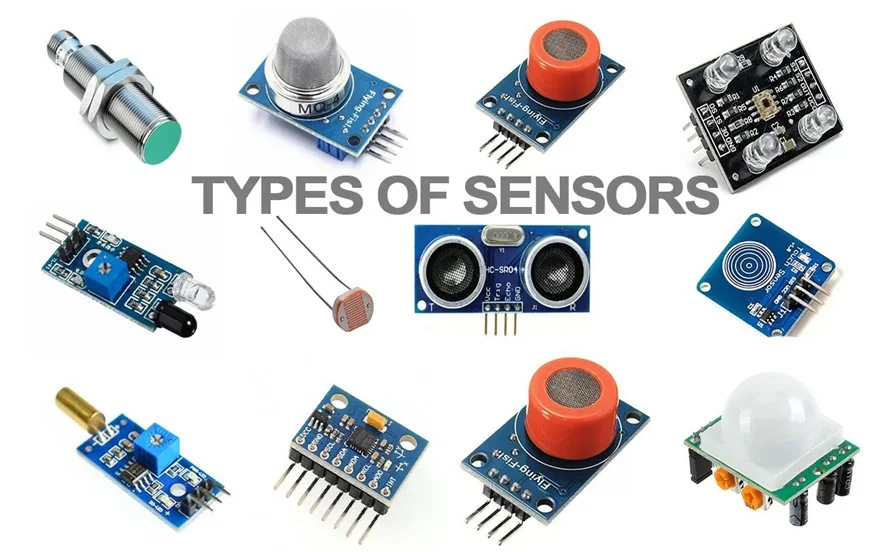

Major Types of Sensor PCBs
The functionality of a sensor pcb is defined by the type of transducers integrated into its design. Manufacturers categorize these boards based on the physical parameters they measure:
1. Temperature Sensor Board PCB
Perhaps the most common variety, a temperature sensor board pcb is used in everything from industrial boilers to medical thermometers. Key sensing elements include:
Thermistors: Often used in Battery Management Systems (BMS) for safety monitoring.
RTDs (Resistance Temperature Detectors): Known for high accuracy in industrial processing.
Thermocouples: Preferred for research and heavy-duty industrial furnaces due to their wide temperature range.
2. Pressure and Force Sensors
These pcb sensors detect physical stress or atmospheric changes. Piezoelectric sensors generate an electrical charge in response to mechanical stress, making them ideal for industrial vibration monitoring, while capacitive pressure sensors offer high sensitivity for weather stations and consumer touch interfaces.
3. Motion and Orientation Sensors
Critical for the automotive and aerospace sectors, these boards utilize:
Accelerometers: Found in airbags and smartphones to detect sudden changes in velocity.
Gyroscopes: Essential for drones and navigation units to maintain orientation and detect rotational movement.
4. Humidity and Environmental Sensors
These boards monitor atmospheric conditions. Capacitive humidity sensors are widely used in HVAC systems to forecast weather by detecting changes in the dielectric constant of the air.
5. Optical and Light Sensors
Utilizing photo-diodes or photo-transistors, these boards measure light intensity for security systems, remote controls, and high-speed optical communications.
Key Components of a Sensor Circuit Board
A successful sensor pcb requires more than just the sensor itself; it needs a robust ecosystem of components to ensure data integrity.
Signal Conditioning Circuitry: Raw sensor signals are often weak (measured in millivolts). Amplifiers boost these signals, while filters remove unwanted electromagnetic noise.
Analog-to-Digital Converters (ADCs): Since the physical world is analog and computers are digital, the ADC is crucial. Designers focus on Resolution (the ability to distinguish small signal gaps) and Sampling Rate (the speed of data conversion).
Power Management: Sensor accuracy depends on stable voltage. Voltage regulators prevent fluctuations, while decoupling capacitors filter out noise from the power supply near sensitive ICs.
Microcontrollers (MCUs): The "brain" that manages data processing, storage, and external communication.
Communication Interfaces: Standards such as I2C, SPI, and UART allow the board to transmit data to larger systems or cloud networks.
Design Considerations for PCB Sensors
Designing a sensor pcb is significantly more challenging than designing a standard logic board. Precision is the priority.
Signal Integrity and Noise Mitigation
Because pcb sensors often produce low-voltage signals, they are highly susceptible to interference. To combat this, designers use dedicated ground planes for shielding and maintain strict physical separation between "noisy" digital traces and sensitive analog lines.
Thermal Management
Heat is the enemy of accuracy. In a temperature sensor board pcb, a hot-running microprocessor placed too close to the sensing element will cause "thermal bleed," leading to false readings. Strategic component placement and the use of thermal reliefs are essential.
Environmental Exposure
Environmental sensors must interact with the outside world. This requires precise cutouts in the board or specialized physical orientations so the sensor can "breathe" or see light without exposing the rest of the circuitry to corrosive elements.
Sensor PCB Manufacturing Process
The fabrication of a sensor pcb requires tighter tolerances and specialized materials.
Material Selection: Standard FR-4 is common, but high-precision sensors often require Ceramic substrates for thermal stability or Polyimide (Flex PCB) for wearable applications.
Surface Finish: ENIG (Electroless Nickel Immersion Gold) is preferred because it provides an exceptionally flat surface, which is critical for mounting microscopic MEMS (Micro-Electro-Mechanical Systems) components.
SMT Assembly: Automated Surface Mount Technology is used to place components with micron-level precision.
Calibration and Functional Testing: Unlike regular boards, a sensor board must be tested against calibrated physical standards (e.g., a known temperature or pressure) to verify accuracy.
Benefits of Sensor PCBs
Space Efficiency: Integrating multiple pcb sensors onto a single board allows for massive miniaturization, essential for modern smartphones and wearables.
Reliability: Reducing the number of mechanical wire connections between sensors and controllers increases the overall lifespan of the device.
Enhanced Performance: By placing the processing circuitry close to the sensor, signal degradation and latency are minimized.
Simplified Assembly: A single integrated board reduces the complexity of final product assembly, lowering costs for mass production.
Challenges and Technical Solutions of Sensor PCBs
Manufacturing these advanced boards involves overcoming significant hurdles:
Fragility: Many MEMS components are sensitive to mechanical stress. Manufacturers use specialized potting compounds or conformal coatings to protect them from moisture and shock.
Cost: The need for high-performance substrates and gold finishes increases the price point compared to standard electronics.
Miniaturization Risks: As traces get smaller, the risk of electrical leakage increases. Utilizing HDI (High-Density Interconnect) technology allows for ultra-fine lines without sacrificing reliability.
Future Trends in Sensor PCB Technology
The revolution of the sensor pcb is moving toward higher sensitivity and seamless integration into daily life.
Miniaturization via mSAP: The Modified Semi-Additive Process (mSAP) is enabling the creation of circuit patterns so fine they were previously impossible, allowing for even smaller IoT devices.
Flexible and Stretchable Electronics: We are moving toward boards that can be adhered to human skin or woven into textiles, using stretchable materials that maintain conductivity even when bent.
Advanced Heat Management: Future designs are incorporating embedded heat pipes to ensure that high-powered sensors can operate in extreme environments without losing calibration.
Conclusion
The sensor pcb acts as the essential bridge between our physical reality and the digital world. As electronic devices continue to shrink and become more integrated into our lives, the demand for high-performance, durable, and accurate pcb sensors will only grow.
By choosing an experienced partner for specialized material selection and thermal management, engineers can ensure their projects deliver the accuracy and longevity required for today’s data-driven world. Whether for aerospace, healthcare, or industrial automation, the right sensor board is the foundation of innovation.
